CCTV Application

Shenzhen Fushi Technology Co., Ltd. specializes in security system ultra-high definition video transmission cable and accessories.

Company Qualification - National High-tech Enterprise, enterprise above designated size of Longhua District, ISO9001:2015, more than 50 product patents and CE/RoHS/REACH and other type of product certifications.

Related Products

Grid View List View

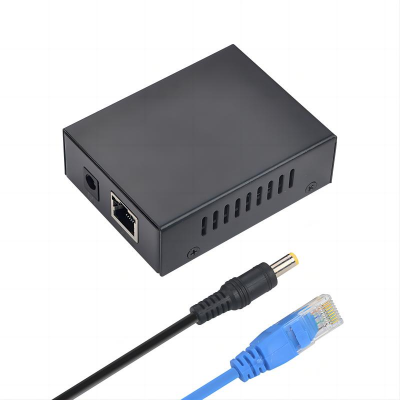

FSATECH POE412401
Gigabit DC interface, 1500V high voltage isolation + iron shell

(this model can only be matched with POE-01201 power supply can reach 12V4A current, other products work 12V2A)

DC/OUT:12V/4A(48W)

at 4-pair standard

PoE input voltage: 44-57V

Power supply position: 1,2+/3,6- or 4,5+/7,8-

Size: 81*61*26mm

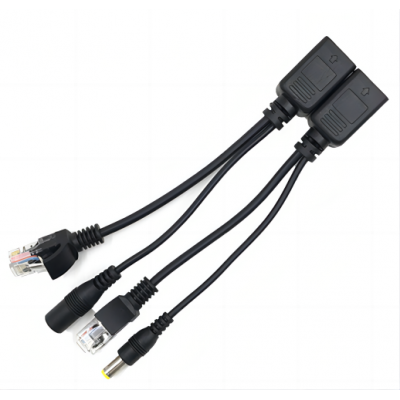

FSATECH POE501P-B
POE Splitter shield

1. Power supply: DC8V ~ DC24V (according to the back-end equipment using parameters)

2. DC Master Port: 5.5 * 2.1 mm

3. DC male tip: 5.5 * 2.1 mm

4. RJ45 shielded network block: 8P8C

5. Network Crystal Head: 8P8C

6. Power Pin: (4/5 +)(7/8 -)

7. Data Foot: 1/2/3/6

8. Color: black

9. Effective transmission distance: CAT5E/CCA20M/BC40M Cat6/CCA30M/BC50M CAT6e/CCA40M/BC60M (cameras only for machines under 300W)
FSATECH CA30402
M12-4Pin Aviation male to female spring cable
CON201_202
DC Power length 8-9mm male to press terminal CCTV Connector
FSATECH EC-801
FSATECH Hot Sale 299mm DC 5.5*2.1 input output CCTV Current and Voltage Meter
FSATECH LLT-V808A
Push-in type, 8MP, 4 in 1 HD passive video balun

1 - Support CVBS/HDCVI/HDTVI/AHD
2 - Support Analog/720P/1080P/4MP/5MP/4K
3 - Transmission distance（UTP Cat5e/Cat6 cable）:
* CVBS≦400m
* HDCVI 720P≦300m, HDCVI 1080P≦200m, HDCVI 4MP/5MP/4K≦120m
* HDTVI 720P≦250m, HDTVI 1080P≦150m, HDTVI 4MP/5MP/4K≦100m
* AHD 720P≦250m, AHD 1080P≦150m, AHD 4MP/5MP/4K≦100m
FSATECH LLT-V808B
Push-in type, 8MP, 4 in 1 HD passive video balun

1 - Support CVBS/HDCVI/HDTVI/AHD
2 - Support Analog/720P/1080P/4MP/5MP/4K
3 - Transmission distance（UTP Cat5e/Cat6 cable）:
* CVBS≦400m
* HDCVI 720P≦300m, HDCVI 1080P≦200m, HDCVI 4MP/5MP/4K≦120m
* HDTVI 720P≦250m, HDTVI 1080P≦150m, HDTVI 4MP/5MP/4K≦100m
* AHD 720P≦250m, AHD 1080P≦150m, AHD 4MP/5MP/4K≦100m

FSATECH VP-BD28K-xxM

Product list

Model No.	SPEC	CVBS	TVI	CVI	AHD
VP-BD28K-5M	Siamese BNC Video + DC Power CCTV Cable, OD:2.8+2.8mm, 5M	2MP	5MP	5MP	5MP
VP-BD28K-10M	Siamese BNC Video + DC Power CCTV Cable, OD:2.8+2.8mm, 10M	2MP	5MP	5MP	5MP
VP-BD28K-15M	Siamese BNC Video + DC Power CCTV Cable, OD:2.8+2.8mm, 15M	2MP	5MP	5MP	5MP
VP-BD28K-18M	Siamese BNC Video + DC Power CCTV Cable, OD:2.8+2.8mm, 18M	2MP	5MP	5MP	5MP
VP-BD28K-18.3M	Siamese BNC Video + DC Power CCTV Cable, OD:2.8+2.8mm, 18.3M	2MP	5MP	5MP	5MP
VP-BD28K-20M	Siamese BNC Video + DC Power CCTV Cable, OD:2.8+2.8mm, 20M	2MP	5MP	5MP	5MP
VP-BD28K-30M	Siamese BNC Video + DC Power CCTV Cable, OD:2.8+2.8mm, 30M	2MP	5MP	5MP	5MP

FSATECH LLT-V808
Push-in type, 8MP, 4 in 1 HD passive video balun

1 - Support CVBS/HDCVI/HDTVI/AHD
2 - Support Analog/720P/1080P/4MP/5MP/4K
3 - Transmission distance（UTP Cat5e/Cat6 cable）:
* CVBS≦400m
* HDCVI 720P≦300m, HDCVI 1080P≦200m, HDCVI 4MP/5MP/4K≦120m
* HDTVI 720P≦250m, HDTVI 1080P≦150m, HDTVI 4MP/5MP/4K≦100m
* AHD 720P≦250m, AHD 1080P≦150m, AHD 4MP/5MP/4K≦100m
EJ-USE-xxM
CCTV Cat6 Cat5e Flat Round Jumper Cable for IP Camera
FTP SFTP CAT5e 305M
Fsatech Bare Solid Copper Conductor Trunk Wiring Multimedia 4pr 24awg utp Cat 5e Cable

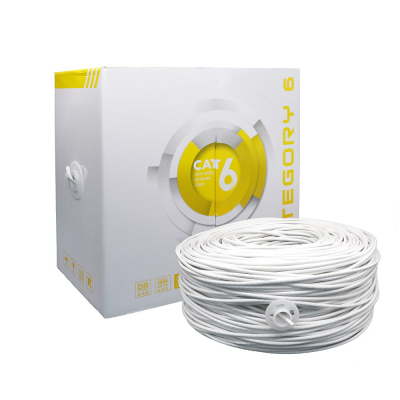

UTP6-305M
Fsatech Rohs Jacket PVC PE Network 305m Patch Cord RJ45 Stand Cable Lan Utp Cat6
