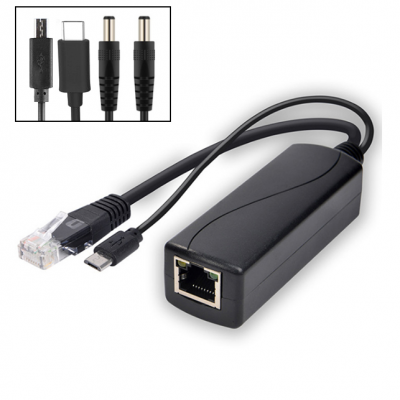

FSATECH POE20524X

Gigabit DC5.5*2.1/Type-C/Micro USB/DC5.5*2.5 and other interfaces, isolated type

DC/OUT:5V/2.4A(12.95W)

IEEE802.3af standard

PoE input voltage: 37-57V (15.4W)

Power supply position: 1,2+/3,6- or 4,5+/7,8-

Size: 81*28*24mm

FSATECH POE21220X

Gigabit DC5.5*2.1/Type-C/Micro USB/DC5.5*2.5 and other interfaces, isolated type

DC/OUT:12V/2A(24W)

IEEE802.3af/at standard

PoE input voltage: 44-57V

Power supply position: 1,2+/3,6- or 4,5+/7,8-

Size: 81*28*24mm

FSATECH POE21210X

Gigabit DC5.5*2.1/Type-C/Micro USB/DC5.5*2.5 and other interfaces, isolated type

DC/OUT:12V/1A(12.95W)

IEEE802.3af standard

PoE input voltage: 37-57V (15.4W)

Power supply position: 1,2+/3,6- or 4,5+/7,8-

Size: 81*28*24mm

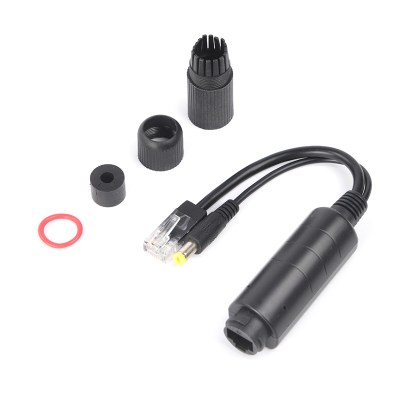

FSATECH POE312101-B

100 Mbps DC interface, 1500V high voltage isolation + waterproof + black

DC/OUT:12V/1A(12.95W)

IEEE802.3af standard

PoE input voltage: 37-57V (15.4W)

Power supply position: 1,2+/3,6- or 4,5+/7,8-

Size: 66*24*22mm

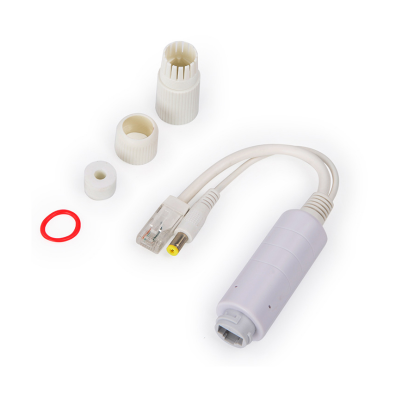

FSATECH POE312101-W

10/100Mbps DC interface, 1500V high voltage isolation + waterproof + white

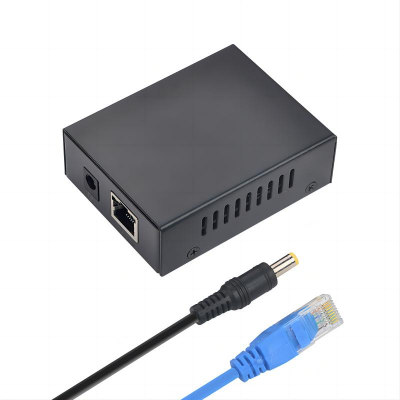

FSATECH POE405401 Gigabit DC interface, 1500V high voltage isolation + iron shell

DC/OUT:5V/4A(20W)

at 4-pair standard

PoE input voltage: 44-57V

Power supply position: 1,2+/3,6- or 4,5+/7,8-

Size: 81*61*26mm

FSATECH POE412401

Gigabit DC interface, 1500V high voltage isolation + iron shell

(this model can only be matched with POE-01201 power supply can reach 12V4A current, other products work 12V2A)

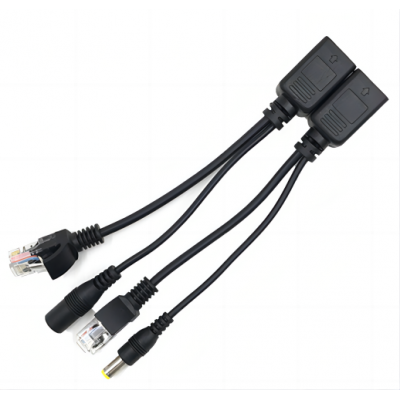

FSATECH POE501-B

POE Splitter

1. Power supply: DC8V ~ DC24V (according to the back-end equipment using parameters)

2. DC Master Port: 5.5 * 2.1 mm

3. DC male tip: 5.5 * 2.1 mm

4. RJ45 network block: 8P8C

5. Network Crystal Head: 8P8C

6. Power Pin: (4/5 +)(7/8 -)

7. Data Foot: 1/2/3/6

8. Color: Black

9. Effective transmission distance: CAT5E/CCA20M/BC40M Cat6/CCA30M/BC50M CAT6e/CCA40M/BC60M (cameras only for machines under 300W)

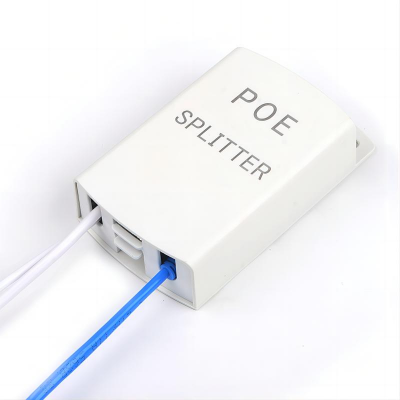

FSATECH JB-P01

PoE Splitter waterproof box

All models (except the iron case) POE separator can be fitted into this waterproof case

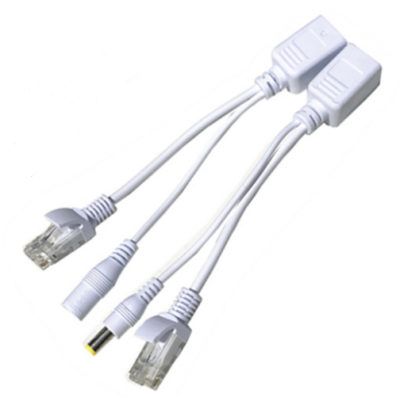

FSATECH POE501-W

POE Splitter

 1. Power supply: DC8V ~ DC24V (according to the back-end equipment using parameters)

2. DC Master Port: 5.5 * 2.1 mm

3. DC male tip: 5.5 * 2.1 mm

4. RJ45 network block: 8P8C

5. Network Crystal Head: 8P8C

6. Power Pin: (4/5 +)(7/8 -)

7. Data Foot: 1/2/3/6

8. Color: white

9. Effective transmission distance: CAT5E/CCA20M/BC40M Cat6/CCA30M/BC50M CAT6e/CCA40M/BC60M (cameras only for machines under 300W)

FSATECH POE501P-W

POE Splitter  shield

 1. Power supply: DC8V ~ DC24V (according to the back-end equipment using parameters)

2. DC Master Port: 5.5 * 2.1 mm

3. DC male tip: 5.5 * 2.1 mm

4. RJ45 shielded network block: 8P8C

5. Network Crystal Head: 8P8C

6. Power Pin: (4/5 +)(7/8 -)

7. Data Foot: 1/2/3/6

8. Color: white

9. Effective transmission distance: CAT5E/CCA20M/BC40M Cat6/CCA30M/BC50M CAT6e/CCA40M/BC60M (cameras only for machines under 300W)

FSATECH POE501P-B

POE Splitter  shield

1. Power supply: DC8V ~ DC24V (according to the back-end equipment using parameters)

2. DC Master Port: 5.5 * 2.1 mm

3. DC male tip: 5.5 * 2.1 mm

4. RJ45 shielded network block: 8P8C

5. Network Crystal Head: 8P8C

6. Power Pin: (4/5 +)(7/8 -)

7. Data Foot: 1/2/3/6

8. Color: black

9. Effective transmission distance: CAT5E/CCA20M/BC40M Cat6/CCA30M/BC50M CAT6e/CCA40M/BC60M (cameras only for machines under 300W)
