FSATECH P01

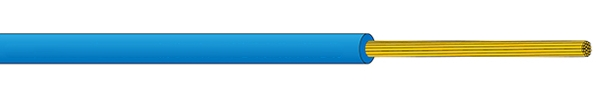

AVR cable 0.08~0.4mm²

This product is suitable for the internal installation and wiring of electrical appliances, instruments, electronic equipment and automation devices with AC rated voltage U 0/U of 300/300V and below.

Product standard：JB/T/T 8734.4-2012

Features Parameters Download

Features

1、The long-term use temperature of the cable is -15 degrees Celsius ~ 70 degrees Celsius
2、The cable laying temperature is not less than 0 degrees Celsius, and the special use temperature can be customized.

Parameters

Nominal cross-section mm²	Single wire in conductor Maximum diameter mm	Insulation thickness Nominal value mm	Average outer diameter upper limit mm	Maximum conductor resistance at 20 degrees Celsius Ω/km		Minimum insulation resistance at 70 degrees Celsius MΩ·km
				Maximum conductor resistance at 20 degrees Celsius Ω/km
				Copper core	Tinned copper core
0.08	0.13	0.4	1.3	247	254	0.018
0.12	0.16	0.4	1.5	158	163	0.016
0.2	0.16	0.4	1.6	92.3	95	0.014
0.3	0.16	0.5	2	69.2	71.2	0.014
0.4	0.16	0.5	2.1	48.2	49.6	0.012
