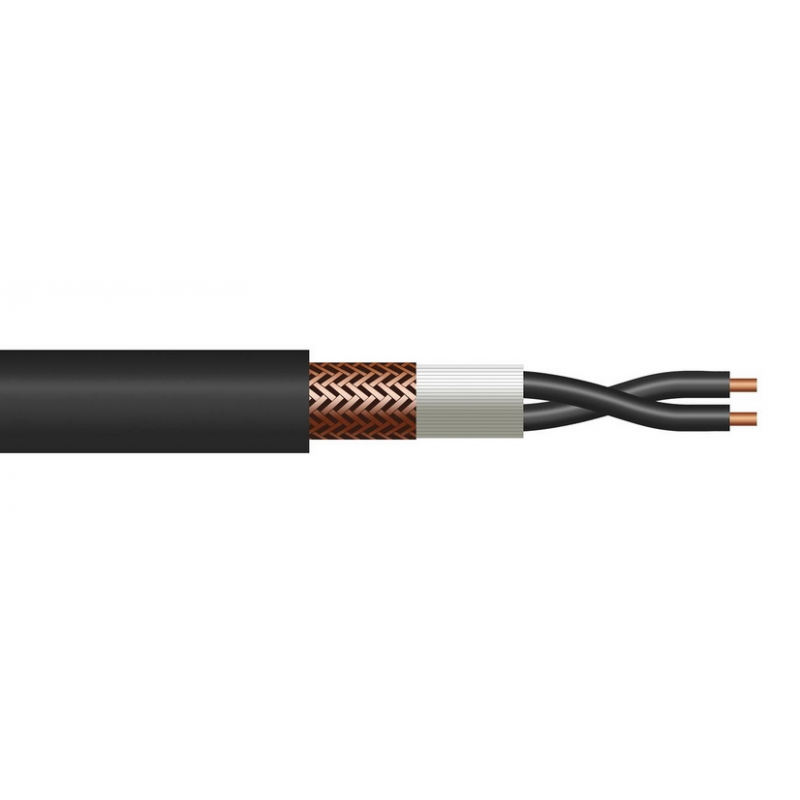

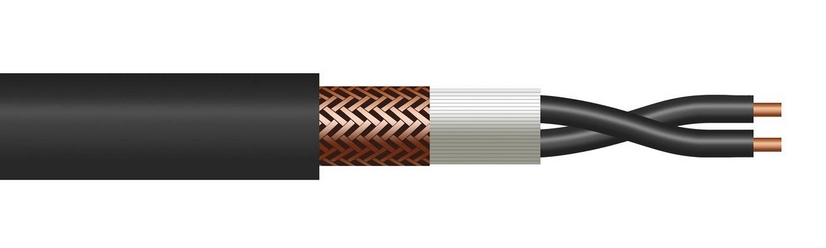

RVSVP cable 1~8P, 0.12~2.5mm²

This product is suitable for AC rated voltage U 0/U is 300/300V and below electrical appliances, instruments, electronic equipment and automation devices, for shielding requirements of wiring connection, can also be used as short-distance signal, intercom data transmission.

Features Parameters Download

Features

1、The long-term use temperature of the cable is -15 degrees Celsius ~ 70 degrees Celsius
2、The cable laying temperature is not less than 0 degrees Celsius, and the special use temperature can be customized.

Parameters

guage	Insulation approximate outside diameter mm	braided density %	Maximum conductor resistance at 20 degrees Celsius Ω/kmm	Approximate outside diameter of cable mm
1×2×0.12	1.2	60-80	163	4.2
1×2×0.2	1.35	60-80	95	4.5
1×2×0.3	1.63	60-80	71.2	5.06
1×2×0.4	1.81	60-80	49.6	5.42
1×2×0.5	1.85	60-80	39	5.5
1×2×0.6	1.91	60-80	33	5.62
1×2×0.75	2.1	60-80	26	6
1×2×1.0	2.43	60-80	19.5	6.66
1×2×1.5	2.9	60-80	13.3	8
1×2×2	3.14	60-80	10.3	8.48
1×2×2.5	3.57	60-80	7.98	9.44
1×2×4	4.45	60-80	4.95	11.2
1×2×6	5.22	60-80	3.3	13.14
1×3×0.12	1.2	60-80	163	4.38
1×3×0.2	1.35	60-80	95	4.71
1×3×0.3	1.63	60-80	71.2	5.31
1×3×0.4	1.81	60-80	49.6	5.7
1×3×0.5	1.85	60-80	39	5.78
1×3×0.6	1.91	60-80	33	5.91
1×3×0.75	2.1	60-80	26	6.32
1×3×1.0	2.43	60-80	19.5	7.43
1×3×1.5	2.9	60-80	13.3	8.45
1×3×2	3.14	60-80	10.3	8.96
1×3×2.5	3.57	60-80	7.98	9.89
2×2×0.12	1.2	60-80	163	5.76
2×2×0.2	1.35	60-80	95	6.26
2×2×0.3	1.63	60-80	71.2	7.18
2×2×0.4	1.81	60-80	49.6	7.77
