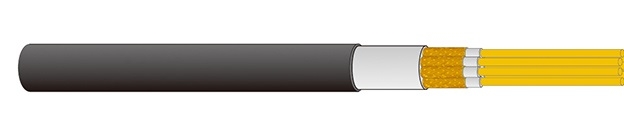

RGB cable 75-2x5C

Discrete video signal data cable RGB75-2 5C The cable is used for picture animation and computer presentation in discrete video applications
It is suitable for digital TV display multimedia classroom and projection system。

Features Parameters Download

Features

1. Different coaxial cables are used to transmit red, green and blue signals, which has a clearer image than the composite video transmission mode.
2.The long-term service temperature of the cable ranges from -15 to 70
3. The cable laying temperature is not less than 0 °C, and the special use temperature can be customized.

Parameters

Type specification	inner conductor	Insulator OD	Outer conductor winding	Aluminum-plastic composite film width * thickness	Finished product approximation
Type specification	n/mm	mm	n/mm	mm	OD mm
RGB75-2×5C	7/0.13	1.55±0.05	48/0.10	10×0.05	9.1
