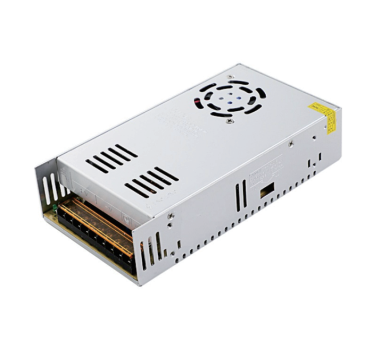

FSATECH PS524V20AF

FSATECH PS524V20AF

24V20A Power supply 360W, Fan


Remark:
1. Unless otherwise specified, all specifications are measured under the input of 220VAC and rated load.
2. Accuracy: including setting error, linear regulation and load regulation.
3. Linear regulation measurement method: under rated load, from low voltage to high voltage test.
4. Load regulation measurement method: from 0% to 100% rated load.
5. The start-up time is measured in the cold start state, and rapid and frequent power on and off may increase the start-up time.



Features
Input voltage :110-220Vac
Ac input range is wide voltage
Protection type: short circuit / over voltage / over temperature protection
Working environment: -10°C-+70°C
New components and fiberglass sheet lines are adopted
The power start LED is lit
100% full load aging test
Short circuit: After the short circuit is removed, it can be recovered by restarting the machine
Can be used at an altitude of 2000 meters, can be used in non-tropical climate
Suitable for LED road lighting, industrial lighting, industrial automation machinery, industrial control systems, electronic instruments, electronic equipment and devices

Parameters
Model PS524V20AF(FAN)
Output DC Voltage 24V
Rated Current 20A
Current range 0~20A
power rating 480W
Ripple and noise 120-140mVp-p
Voltage accuracy ±5 (%)
line regulation ±0.5 (%)
load regulation ±3 (%)
input Voltage range 100~120VAC/175~245VAC (Wide voltage below 60W; Above 120W is selected by switch)
frequency range 47-63HZ
efficiency 82 (%)
AC current 2.0A-3.5A (100-240VAC;
protect Overload 110%-150% of rated output power Abnormal conditions can be automatically restored after removal
short circuit After the short circuit state is lifted, it can be restored by rebooting
environment Operating temperature -10°C~+70°C
Operating humidity 20〜90%RH,non-condensing
Storage temperature -20~+85°C
Storage humidity 10~95%RH
Vibration resistant 10〜500Hz, 2G 10 min/cycle, 60 min each for X, Y, and Z
