FSATECH POE105242

10/100Mbps, TYPE-C, isolated

DC/OUT:5V/2.4A(12.95W)

IEEE802.3af standard

PoE input voltage: 37-57V (15.4W)

Power supply position: 1,2+/3,6- or 4,5+/7,8-

Size: 81*28*24mm

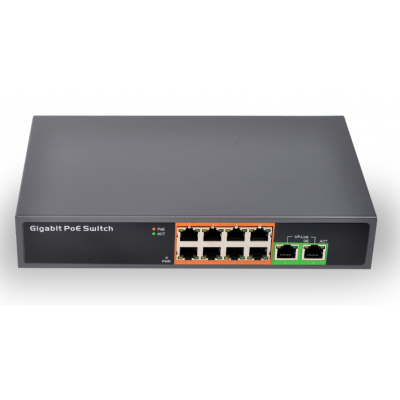

FSATECH POE-08201

8CH POE switch 10/100/1000Mbps,150W

8+2 port full gigabit POE switch

(can be connected to 800W smoothly without stuttering)

Backplane bandwidth: 20Gbps

IEEE802.3af/at standard

POE power supply pin: 1,2+/3,6-

POE data and electrical transmission distance 100 meters

Single port power 15.4W(af);30W(at)

Total power: 150W

Extend mode: 1-4 ports transmission distance 250 meters with DIP switch

Size: 250*150*44mm

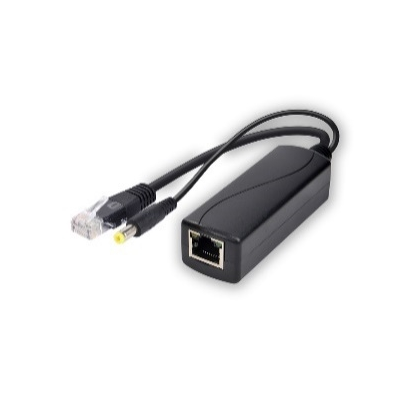

FSATECH POE105241

10/100Mbps, DC, isolated

DC/OUT:5V/2.4A(12.95W)

IEEE802.3af standard

PoE input voltage: 37-57V (15.4W)

Power supply position: 1,2+/3,6- or 4,5+/7,8-

Size: 81*28*24mm

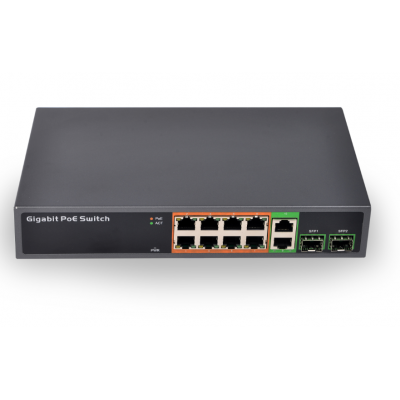

FSATECH POE-08202 8CH POE switch, with 2 SFP 10/100/1000Mbps,150W

8+2+2SFP port all Gigabit POE switches

The SFP fiber port is not a combo interface

(Can be connected to 800W smoothly without stuttering)

Backplane bandwidth: 22 Gbps

IEEE802.3af/at standard

POE power supply pin: 1,2+/3,6-

POE data and electrical transmission distance 100 meters

Single port power 15.4W(af);30W(at)

Total power: 150W

Size: 250*150*44mm

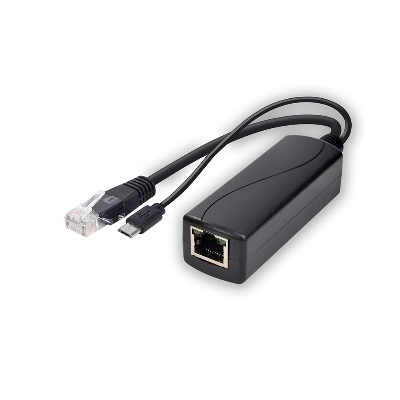

FSATECH POE105243

10/100Mbps, Mirco USB, isolated

DC/OUT:5V/2.4A(12.95W)

IEEE802.3af standard

PoE input voltage: 37-57V (15.4W)

Power supply position: 1,2+/3,6- or 4,5+/7,8-

Size: 81*28*24mm

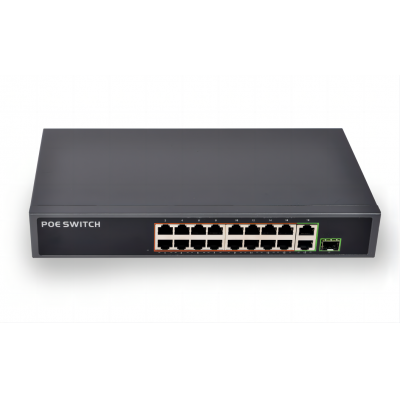

FSATECH POE-16101

16CH POE switch, with 1 SFP, 10/100Mbps, 250W

18-port switch, 16-port POE 16-port 100 Gigabit (can be connected to 800W smoothly without stuttering)

The two Gigabit upper networking ports 1SFP fiber ports are not combo interfaces

Backplane bandwidth: 12.8Gbps

IEEE802.3af/at standard

POE power supply pin: 1,2+/3,6-

Extend mode: 1-16 ports automatically transmit distance of 250 meters

Total power: 250W

Size: 295*165*44mm
