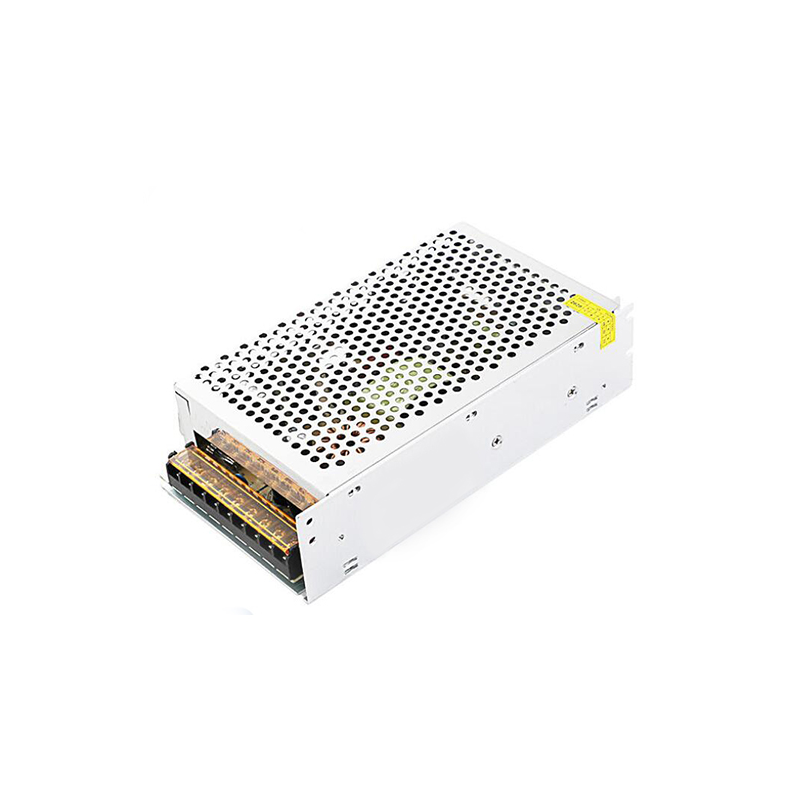

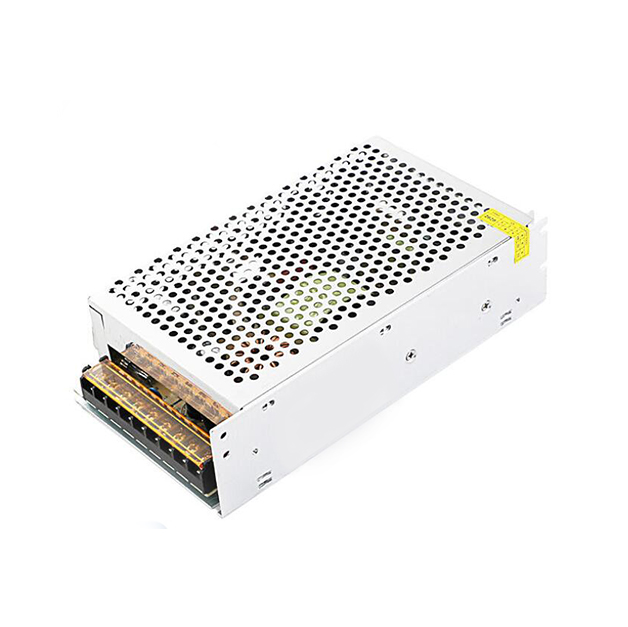

12V 20A Power supply 240W, 24V 10A
Remark:
1. Unless otherwise specified, all specifications are measured under the input of 220VAC and rated load.
2. Accuracy: including setting error, linear regulation and load regulation.
3. Linear regulation measurement method: under rated load, from low voltage to high voltage test.
4. Load regulation measurement method: from 0% to 100% rated load.
5. The start-up time is measured in the cold start state, and rapid and frequent power on and off may increase the start-up time.
| Model |
PS512V20A PS512V20AF（FAN） |
|
| Output | DC Voltage | 12V |
| Rated Current | 20A | |
| Current range | 0 〜20A | |
| power rating | 240W | |
| Ripple and noise | 90-100mVp-p | |
| Voltage adjustment range | 10.1-13.6V | |
| Voltage accuracy | ±5 (%) | |
| line regulation | ±0.5 (%) | |
| load regulation | ±3 (%) | |
| Input | Voltage range | 100~120VAC/175〜245VAC （Wide voltage below 60W; Above 120W is selected by switch） |
| frequency range | 47-63HZ | |
| efficiency | 82 (%) | |
| AC current | 2.0A-3.5A (100-240VAC) | |
| protect | Overload | 110%-150% of rated output power Abnormal conditions can be automatically restored after removal |
| short circuit | After the short circuit state is lifted, it can be restored by rebooting | |
| environment | Operating temperature | -10°C~+70°C |
| Operating humidity | 20〜90%RH,non-condensing | |
| Storage temperature | -20 〜+85°C | |
| Storage humidity | 10 〜95%RH | |
| Vibration resistant | 10〜500Hz, 2G 10 min/cycle, 60 min each for X, Y, and Z | |
