POWER CONTROL CABLE

FSATECH P02
FSATECH P02

FSATECH P02

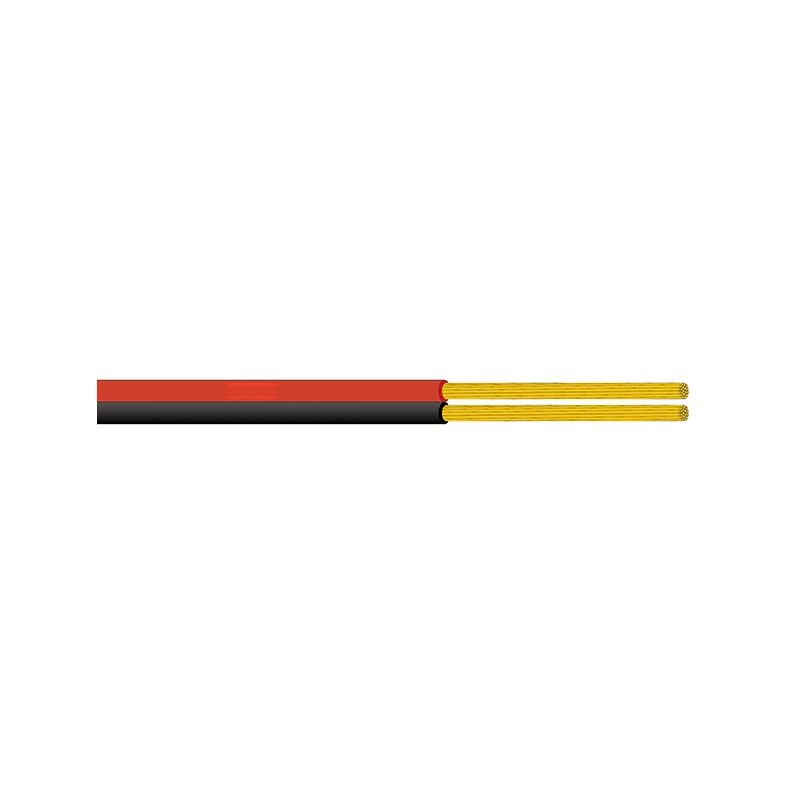

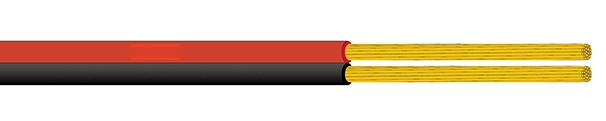

AVRB cable 0.12~0.4mm²


This product is suitable for the internal installation and wiring of electrical appliances, instruments, electronic equipment and automation devices with AC rated voltage U 0/U of 300/300V and below.

Product standard：JB/T/T 8734.4-2012


Contact us

Features Parameters Download
Features
1、The long-term use temperature of the cable is -15 degrees Celsius ~ 70 degrees Celsius
2、The cable laying temperature is not less than 0 degrees Celsius, and the special use temperature can be customized.
3. The insulation material is high-quality polyvinyl chloride, which can be customized (anti-aging, wear-resistant, low-temperature resistance, oil-proof, chemical-resistant, environmentally friendly, low-smoke and halogen-free).
4、100m/200m/500m Per roll or custom length.
Parameters
Nominal cross-section
mm² 		Single wire in conductor
Maximum diameter
mm 		Insulation thickness
Nominal value
mm 		Average outer diameter
upper limit
mm 		Maximum conductor resistance at 20 degrees Celsius  Ω/km Minimum insulation resistance at 70 degrees Celsius MΩ·km
Copper core Tinned copper core
2×0.12 0.16 0.5 1.7*3.4 158 163 0.018
2×0.2 0.16 0.6 2.1*4.2 92.3 95 0.017
2×0.3 0.16 0.6 2.2*4.4 69.2 71.2 0.016
2×0.4 0.16 0.6 2.4*4.8 48.2 49.6 0.014
