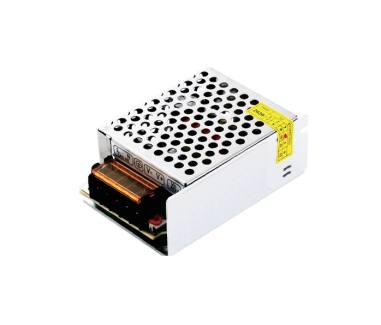

24V1A Power supply 24W
Remark:
1. Unless otherwise specified, all specifications are measured under the input of 220VAC and rated load.
2. Accuracy: including setting error, linear regulation and load regulation.
3. Linear regulation measurement method: under rated load, from low voltage to high voltage test.
4. Load regulation measurement method: from 0% to 100% rated load.
5. The start-up time is measured in the cold start state, and rapid and frequent power on and off may increase the start-up time.
| Model | PS524V1A | |
| Output | DC Voltage | 24V |
| Rated Current | 1A | |
| Current range | 0~1A | |
| power rating | 24W | |
| Ripple and noise | 110mVp-p | |
| Voltage accuracy | ±5 (%) | |
| line regulation | ±0.5 (%) | |
| load regulation | ±3 (%) | |
| input | Voltage range | 100~120VAC/175~245VAC （Wide voltage below 60W; Above 120W is selected by switch） |
| frequency range | 47-63HZ | |
| efficiency | 90 (%) | |
| AC current | 2.0A-3.5A (100-240VAC； | |
| protect | Overload | 110%-150% of rated output power Abnormal conditions can be automatically restored after removal |
| short circuit | After the short circuit state is lifted, it can be restored by rebooting | |
| environment | Operating temperature | -10°C~+70°C |
| Operating humidity | 20〜90%RH,non-condensing | |
| Storage temperature | -20~+85°C | |
| Storage humidity | 10~95%RH | |
| Vibration resistant | 10〜500Hz, 2G 10 min/cycle, 60 min each for X, Y, and Z | |
