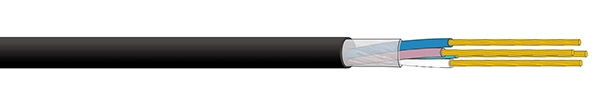

AVVR cable 2~30C, 0.08~0.4mm²
This product is suitable for the internal installation and wiring of electrical appliances, instruments, electronic equipment and automation devices with AC rated voltage U 0/U of 300/300V and below.
Product standard：JB/T/T 8734.4-2012
|
Nominal cross-section mm² |
Single wire in conductor Maximum diameter mm |
Insulation thickness Nominal value mm |
Nominal value of sheath thickness mm |
Average outside diameter or overall dimension mm |
Maximum conductor resistance at 20 degrees Celsius Ω/km | Minimum insulation resistance at 70 degrees Celsius MΩ·km | ||
| top and bottom limitation | Copper core | Tinned copper core | ||||||
| 2×0.08 | 0.13 | 0.4 | 0.6 | 3.1 | 4.1 | 247 | 254 | 0.018 |
| 2.3×3.4 | 2.7×4.1 | |||||||
| 2×0.12 | 0.16 | 0.4 | 0.6 | 3.3 | 4.3 | 158 | 163 | 0.016 |
| 2.4×3.6 | 2.8×4.3 | |||||||
| 2×0.2 | 0.16 | 0.4 | 0.6 | 3.6 | 4.7 | 92.3 | 95 | 0.014 |
| 2.5×3.9 | 3.0×4.7 | |||||||
| 2×0.3 | 0.16 | 0.5 | 0.6 | 4.1 | 5.3 | 69.2 | 71.2 | 0.014 |
| 2.8×4.4 | 3.4×5.3 | |||||||
| 2×0.4 | 0.16 | 0.5 | 0.6 | 4.4 | 5.7 | 48.2 | 49.6 | 0.013 |
| 2.9×4.7 | 3.5×5.7 | |||||||
