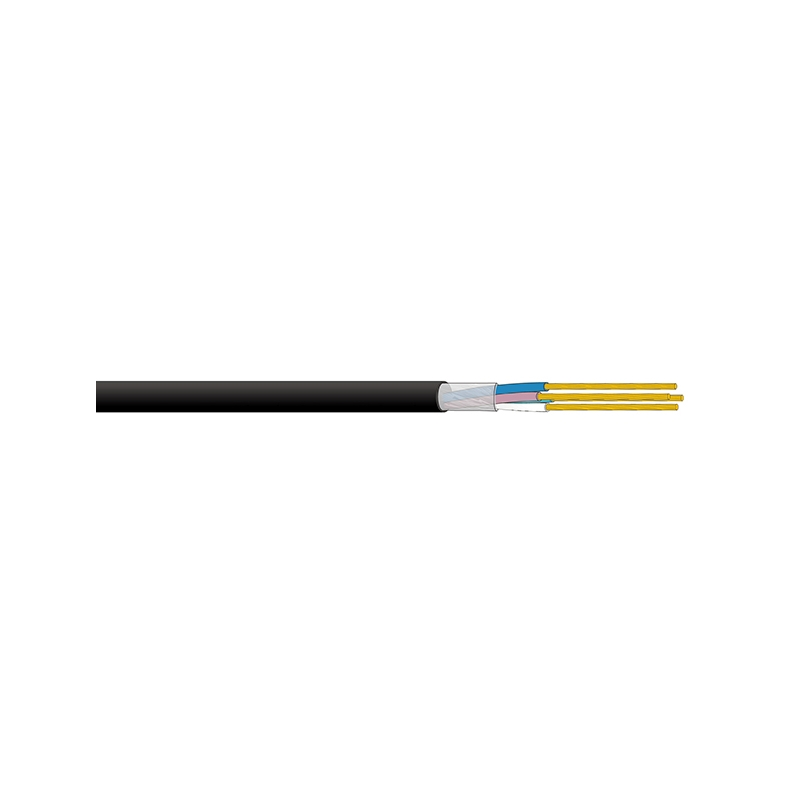

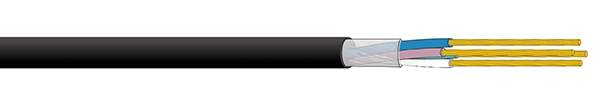

RVV cable 2~30C, 0.08~0.4mm²
This product is suitable for AC rated voltage U 0/U is 300/300V and below can be used mobile electrical appliances, instruments for power connection.
Product standard：GB/T 5023.5-2008
RVV type 300/500V copper core PVC insulated PVC sheathed flexible cable
|
Nominal cross-section. mm² |
The maximum diameter of a single wire in a conductor |
Insulation thickness Nominal value mm |
average external dimension mm | Minimum insulation resistance at 70 degrees Celsius MΩ·km | |
| top and bottom limitation | |||||
| 2×1 | 0.6 | 0.8 | 3.9×5.5 | 5.2×7.3 | 0.01 |
| 2×1.5 | 0.7 | 0.8 | 4.3×6.0 | 5.8×8.0 | 0.01 |
| 2×2.5 | 0.8 | 1 | 5.3×7.6 | 7.1×10.0 | 0.009 |
| 2×4 | 0.8 | 1 | 5.9×8.6 | 7.9×11.6 | 0.0085 |
| 2×4 | 0.8 | 1.1 | 10 | 12.4 | 0.007 |
| 2×6 | 0.8 | 1.1 | 6.5×10.0 | 8.8×13.4 | 0.008 |
| 3×4 | 0.8 | 1.2 | 10.8 | 13.5 | 0.007 |
| 4×4 | 0.8 | 1.2 | 11.8 | 14.6 | 0.007 |
| 5×4 | 0.8 | 1.4 | 13.3 | 16.5 | 0.007 |
| 6×0.75 | 0.4 | 0.8 | 6.5 | 9.6 | 0.011 |
| 6×1.0 | 0.6 | 1 | 8.7 | 11 | 0.01 |
| 6×1.5 | 0.7 | 1.1 | 9.9 | 13.3 | 0.01 |
| 6×2.5 | 0.8 | 1.2 | 12.4 | 15.8 | 0.009 |
| 7×0.75 | 0.4 | 0.8 | 6.5 | 9.6 | 0.011 |
| 7×1.0 | 0.6 | 1.1 | 8.7 | 11 | 0.01 |
| 7×1.5 | 0.7 | 1.1 | 9.9 | 13.3 | 0.01 |
| 8×0.75 | 0.4 | 1 | 7.5 | 10.6 | 0.011 |
| 8×1.0 | 0.6 | 1.2 | 9.5 | 13.2 | 0.01 |
| 8×1.5 | 0.7 | 1.2 | 10.8 | 14.2 | 0.01 |
| 10×0.75 | 0.4 | 1 | 9 | 13.2 | 0.011 |
| 10×1.0 | 0.6 | 1.2 | 11.7 | 14.5 | 0.01 |
| 12×0.75 | 0.4 | 1.2 | 9.5 | 13.2 | 0.011 |
| 12×1.0 | 0.6 | 1.2 | 11.9 | 14.8 | 0.01 |
| 15×0.75 | 0.4 | 1.2 | 10.7 | 14 | 0.011 |
| 15×1.0 | 0.6 | 1.2 | 11.6 | 15.5 | 0.01 |
| 16×0.75 | 0.4 | 1.2 | 10.7 | 14 | 0.011 |
| 16×1.0 | 0.6 | 1.2 | 11.6 | 15.5 | 0.01 |
| 19×0.75 | 0.4 | 1.2 | 11.3 | 15 | 0.011 |
