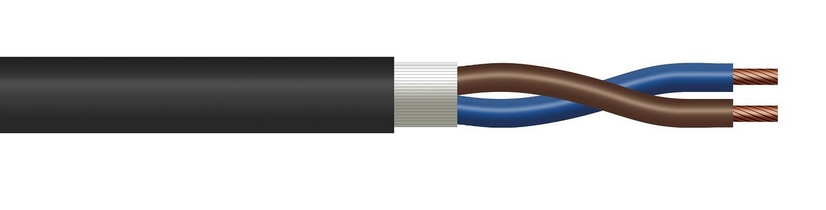

RVSV cable 1~8P, 0.12~2.5mm²
This product is suitable for AC rated voltage U 0/U is 300/500V and below can be used mobile electrical appliances, instruments for power connection.
| guage |
Insulation approximate outside diameter mm |
Sheath thickness mm |
Maximum conductor resistance at 20 degrees Celsius Ω/km |
Approximate outside diameter of finished product mm |
| 1×2×0.12 | 1.23 | 0.6 | 163 | 3.8 |
| 1×2×0.2 | 1.38 | 0.6 | 95 | 4.1 |
| 1×2×0.3 | 1.66 | 0.6 | 71.2 | 4.66 |
| 1×2×0.4 | 1.84 | 0.6 | 49.6 | 5.02 |
| 1×2×0.5 | 1.88 | 0.6 | 39 | 5.1 |
| 1×2×0.6 | 1.94 | 0.6 | 33 | 5.22 |
| 1×2×0.75 | 2.13 | 0.6 | 26 | 5.6 |
| 1×2×1.0 | 2.46 | 0.8 | 19.5 | 6.66 |
| 1×2×1.5 | 2.93 | 0.8 | 13.3 | 7.6 |
| 1×2×2 | 3.17 | 0.8 | 10.3 | 8.08 |
| 1×2×2.5 | 3.6 | 1 | 7.98 | 9.34 |
| 1×2×4 | 4.48 | 1 | 4.95 | 11.1 |
| 1×2×6 | 5.25 | 1 | 3.3 | 12.64 |
| 1×3×0.12 | 1.23 | 0.6 | 163 | 3.98 |
| 1×3×0.2 | 1.38 | 0.6 | 95 | 4.31 |
| 1×3×0.3 | 1.66 | 0.6 | 71.2 | 4.91 |
| 1×3×0.4 | 1.84 | 0.6 | 49.6 | 5.3 |
| 1×3×0.5 | 1.88 | 0.6 | 39 | 5.38 |
| 1×3×0.6 | 1.94 | 0.6 | 33 | 5.51 |
| 1×3×0.75 | 2.13 | 0.8 | 26 | 6.32 |
| 1×3×1.0 | 2.46 | 0.8 | 19.5 | 7.03 |
| 1×3×1.5 | 2.93 | 0.9 | 13.3 | 8.25 |
| 1×3×2 | 3.17 | 0.8 | 10.3 | 8.56 |
| 1×3×2.5 | 3.6 | 1.1 | 7.98 | 10.09 |
| 2×2×0.12 | 1.23 | 0.6 | 163 | 5.36 |
| 2×2×0.2 | 1.38 | 0.6 | 95 | 5.86 |
| 2×2×0.3 | 1.66 | 0.6 | 71.2 | 6.78 |
| 2×2×0.4 | 1.84 | 0.6 | 49.6 | 7.37 |
| 2×2×0.5 | 1.88 | 0.6 | 39 | 7.51 |
| 2×2×0.6 | 1.94 | 0.8 | 33 | 8.1 |
