CONFERENCE SYSTEM CABLE

FSATECH CS03
FSATECH CS03

FSATECH CS03

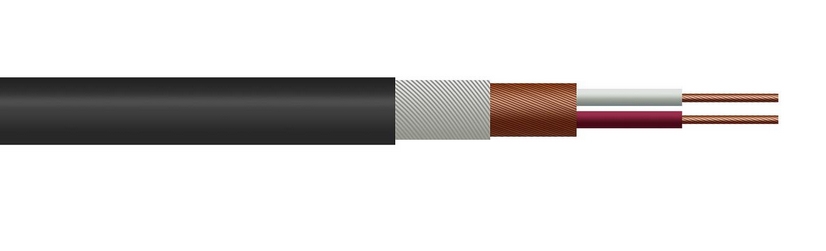

Microphone cable 0.15~0.4mm²


This product is suitable for audio cable for civil audio equipment and other audio transmission equipment

Contact us

Features Parameters Download
Features
1.Use temperature range :-40 ~70, special use temperature can be customized
2.The softness of the product is better

Parameters
Number of cores conductor size Insulation layer thickness Shield structure Average outer diameter
n/mm mm aluminum foil Copper wire braiding Copper wire winding Cotton yarn winding mm
2 20/0.10 0.56 Longitudinal package 96(112)/0.10 — — 6
2 27/0.10 0.54 Longitudinal package 96(112)/0.10 — — 6
2 37/0.10 0.5 Longitudinal package 96(112)/0.10 — — 6
2 48/0.10 0.45 Longitudinal package 96(112)/0.10 — — 6
3 20/0.10 0.56 Longitudinal package 96(112)/0.10 — — 6.15
3 27/0.10 0.54 Longitudinal package 96(112)/0.10 — — 6.05
2 37/0.10 0.5 — — 120/0.10 60/20yarn 6
