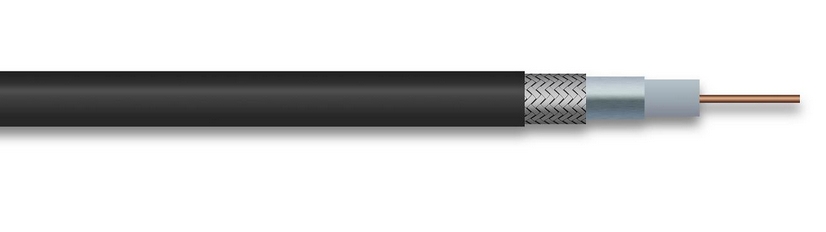

SDI cable
3G-SDI cable is used in ultra-high-definition digital input and output digital component serial interface device, can provide 2.97Gb/s transmission rate, can fully retain all details of data signal, high-fidelity design, exquisite manufacturing process, low signal attenuation coefficient, strong anti-interference ability, good transmission effect, uncompressed ultra-high-definition digital signal will greatly improve the visual and auditory audio and video effects.
| Core wire specifications | 1/1.02mm high purity oxygen-free copper wire | |||||
| shield | 125% covered with aluminum foil and high-density tinned wire shielding | |||||
| OD | 7.0mm±0.2mm | |||||
| tegument | Eco-friendly PVC | |||||
| Connectors | BNC, gold-plated terminals, nickel-plated housing | |||||
| Resolution | 1920×1200@60Hz；VGA，SVGA，XGA，SXGA，UXGA，WUXGA | |||||
| HD standard | 1080P，480i，480P，720P，1080i，1080P | |||||
| characteristic impedance | （differential impedance）75±3Ω（TDR） | |||||
| Propagation delay | The internal delay difference is below 151psec, and the inter-pair delay difference is below 2.42ns | |||||
| Transmission distance | Up to one hundred meters | |||||
| Contact Resistance | 5Ω MAX | |||||
| Insulation resistance | 5mΩ MIN | |||||
| Data security | Transmission is not interfered by electromagnetic waves | |||||
| broadband | 10.2Gbps（340MHz） | |||||
